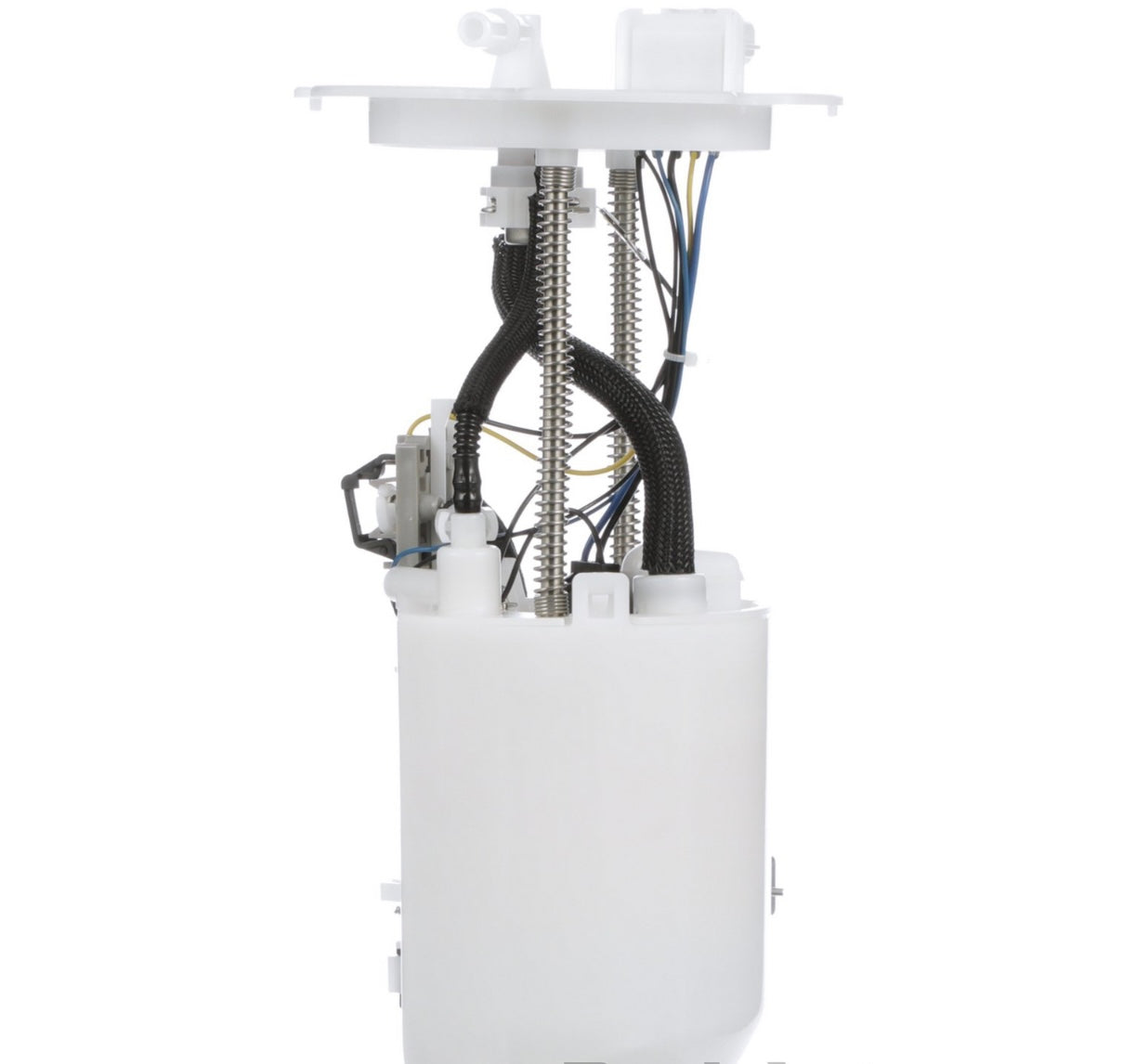

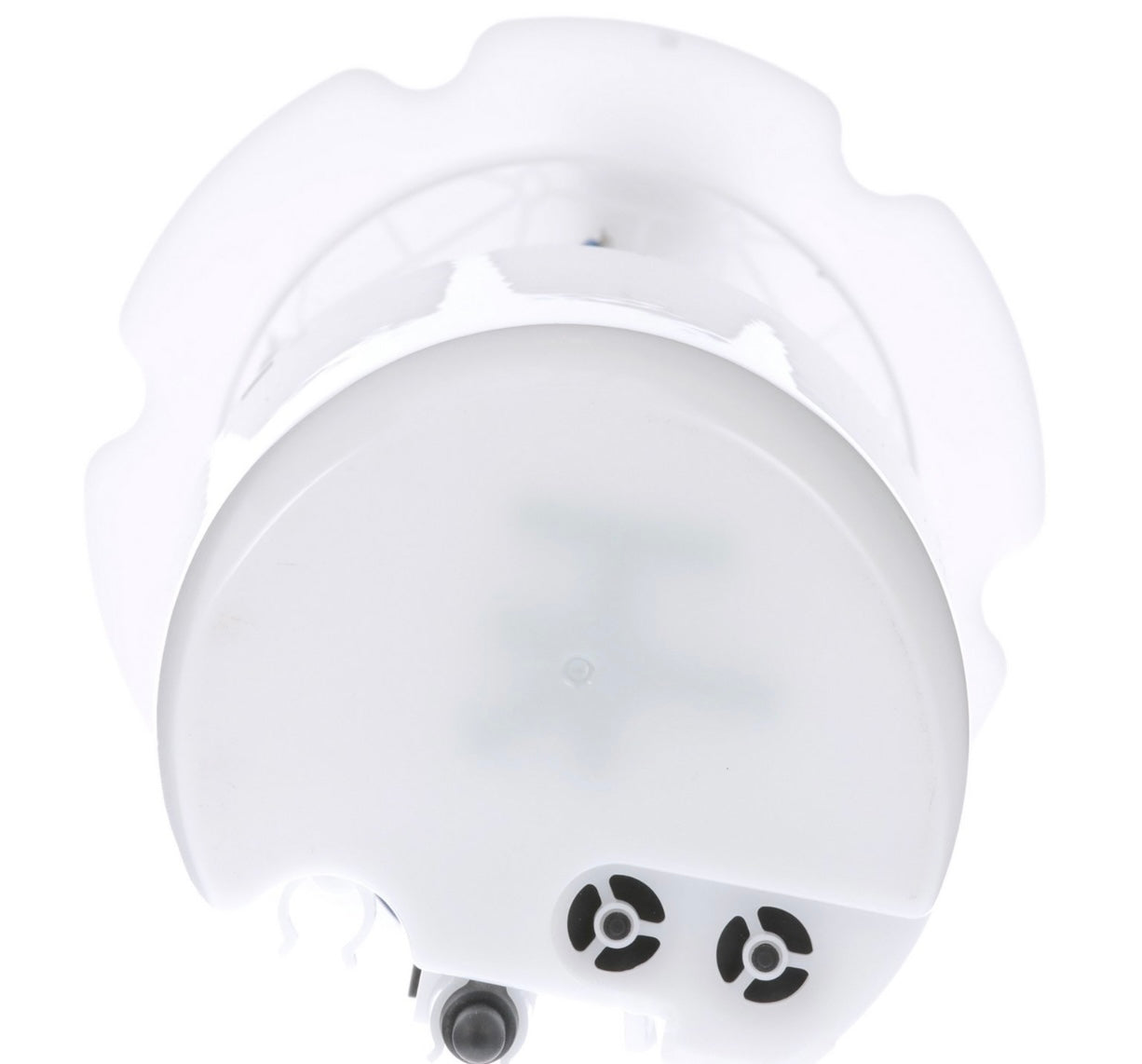

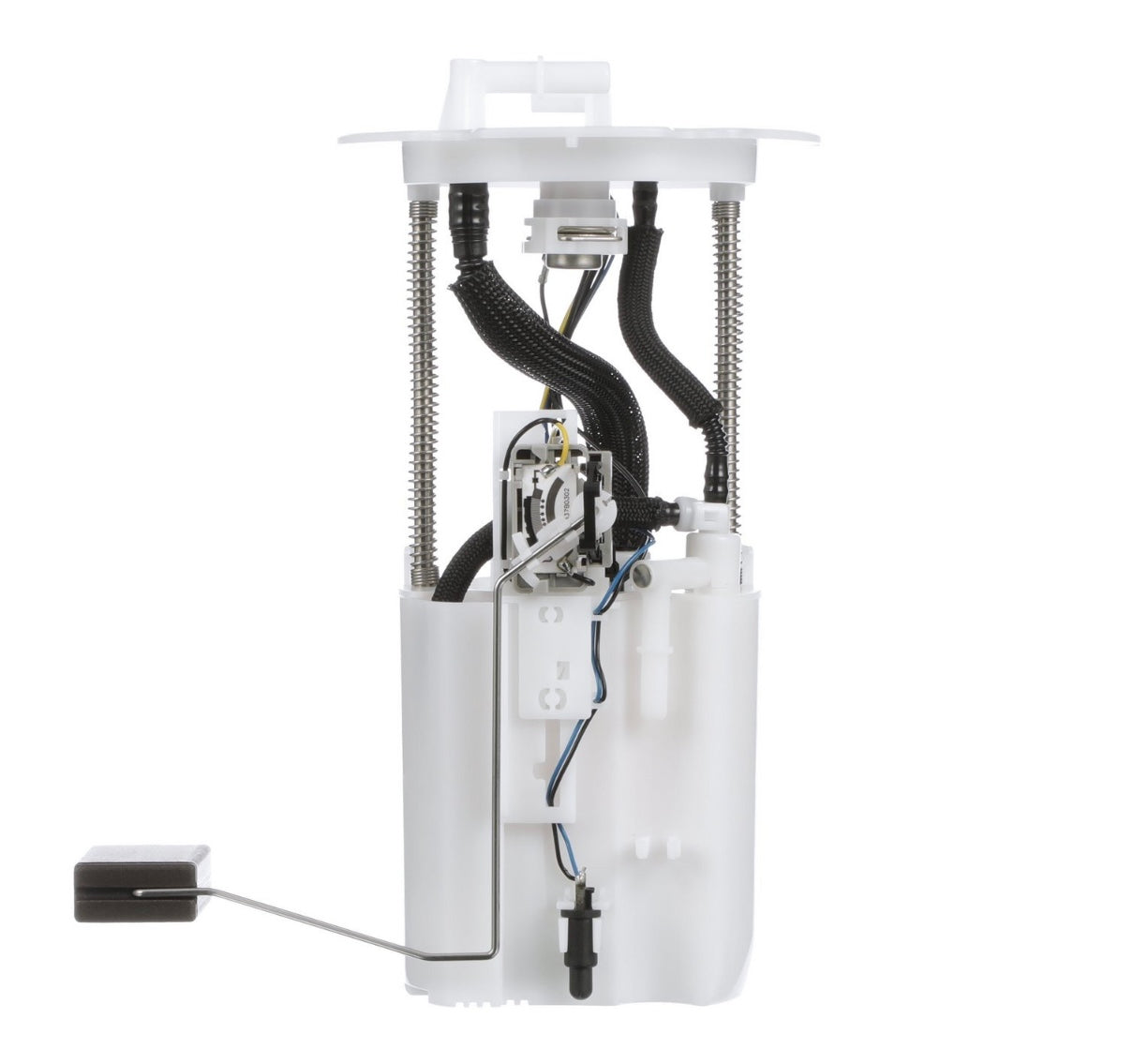

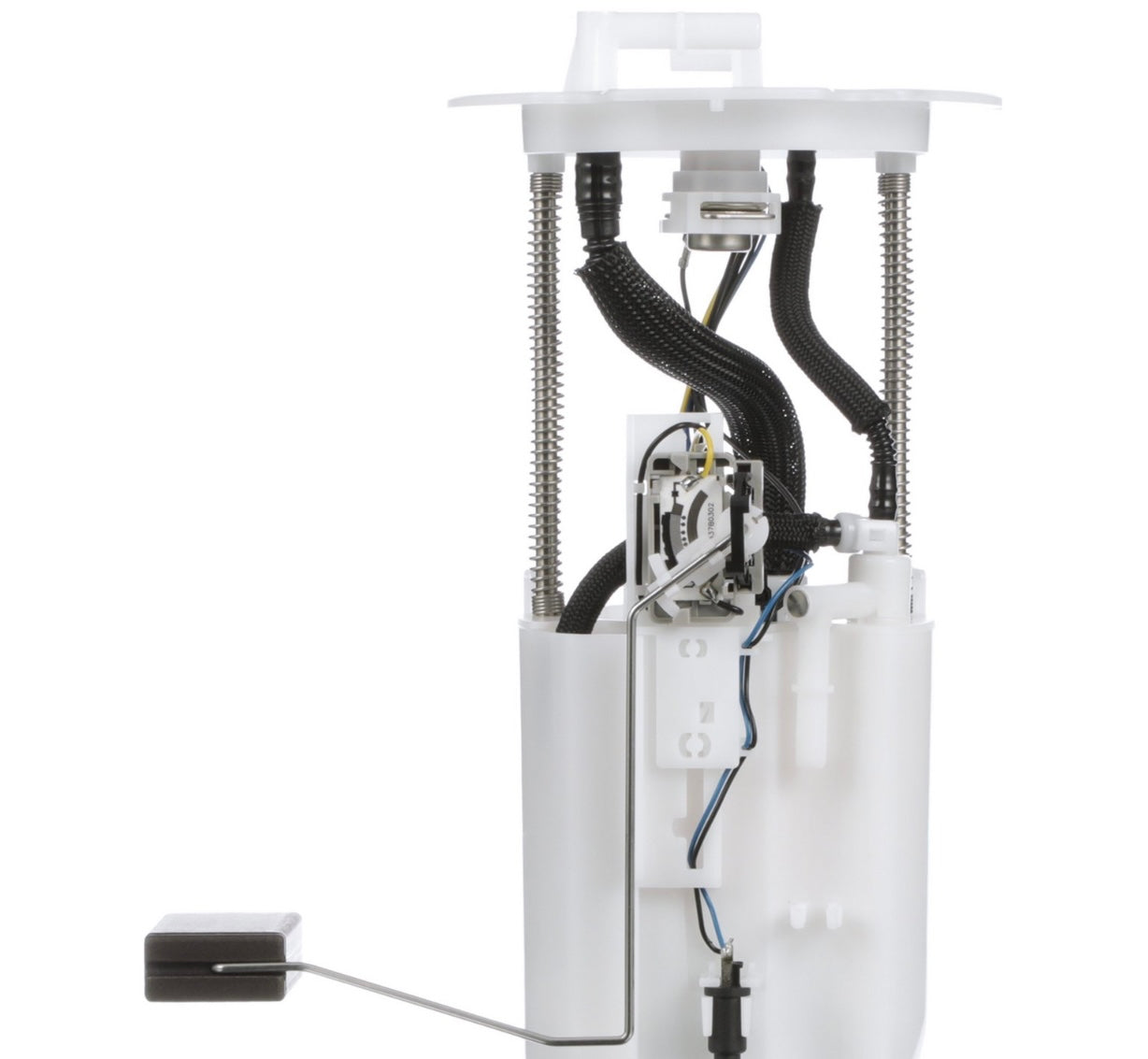

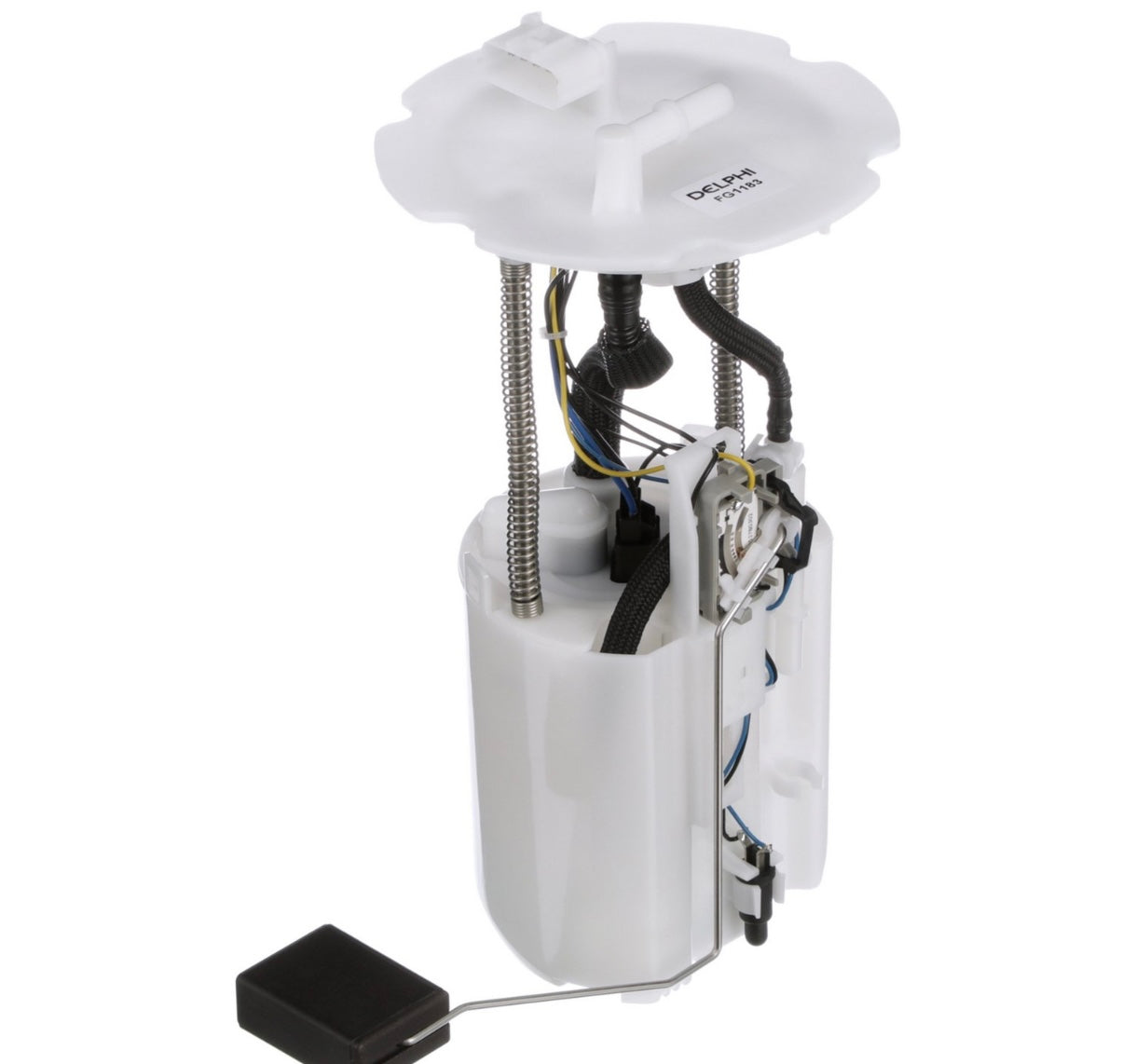

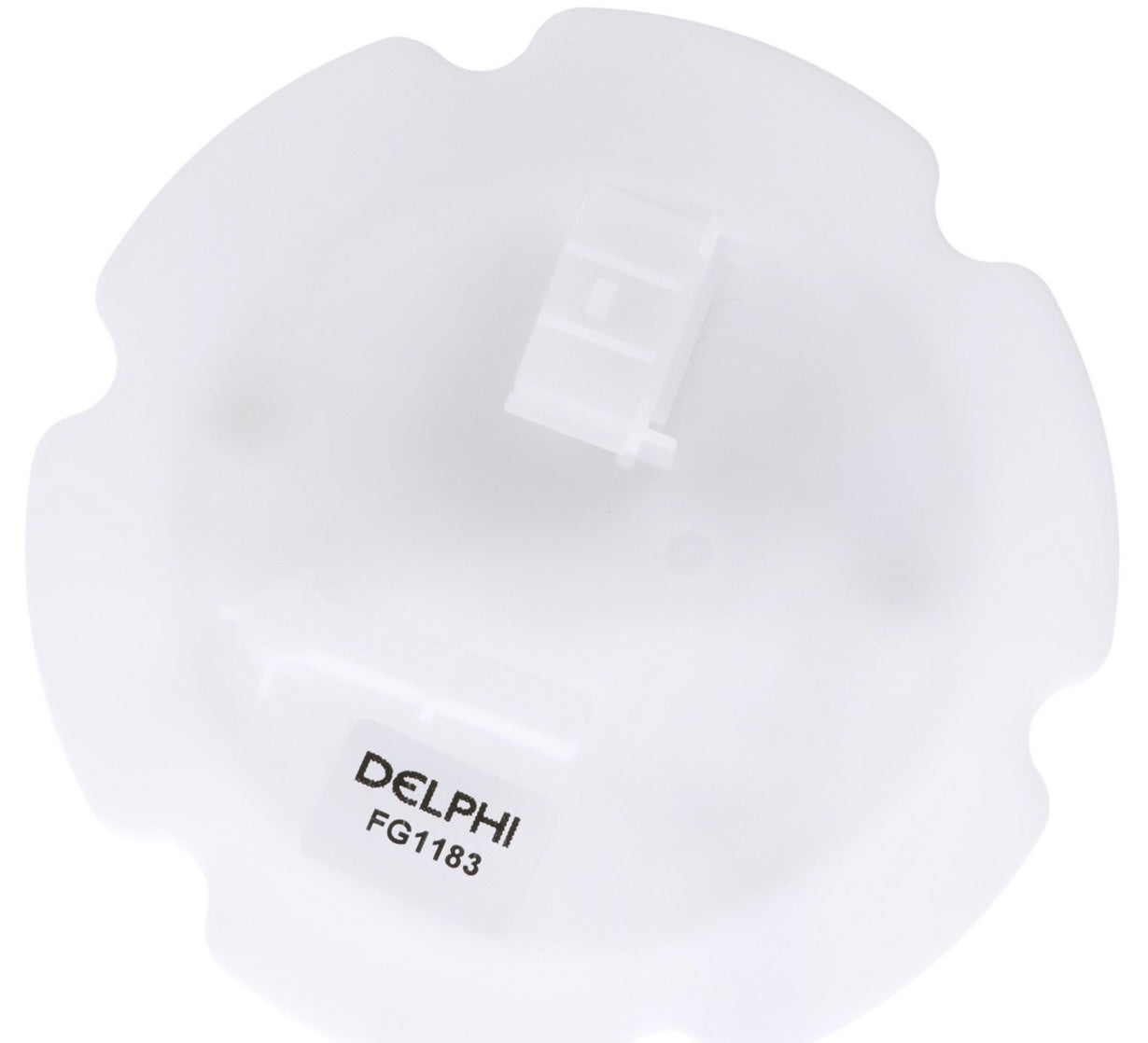

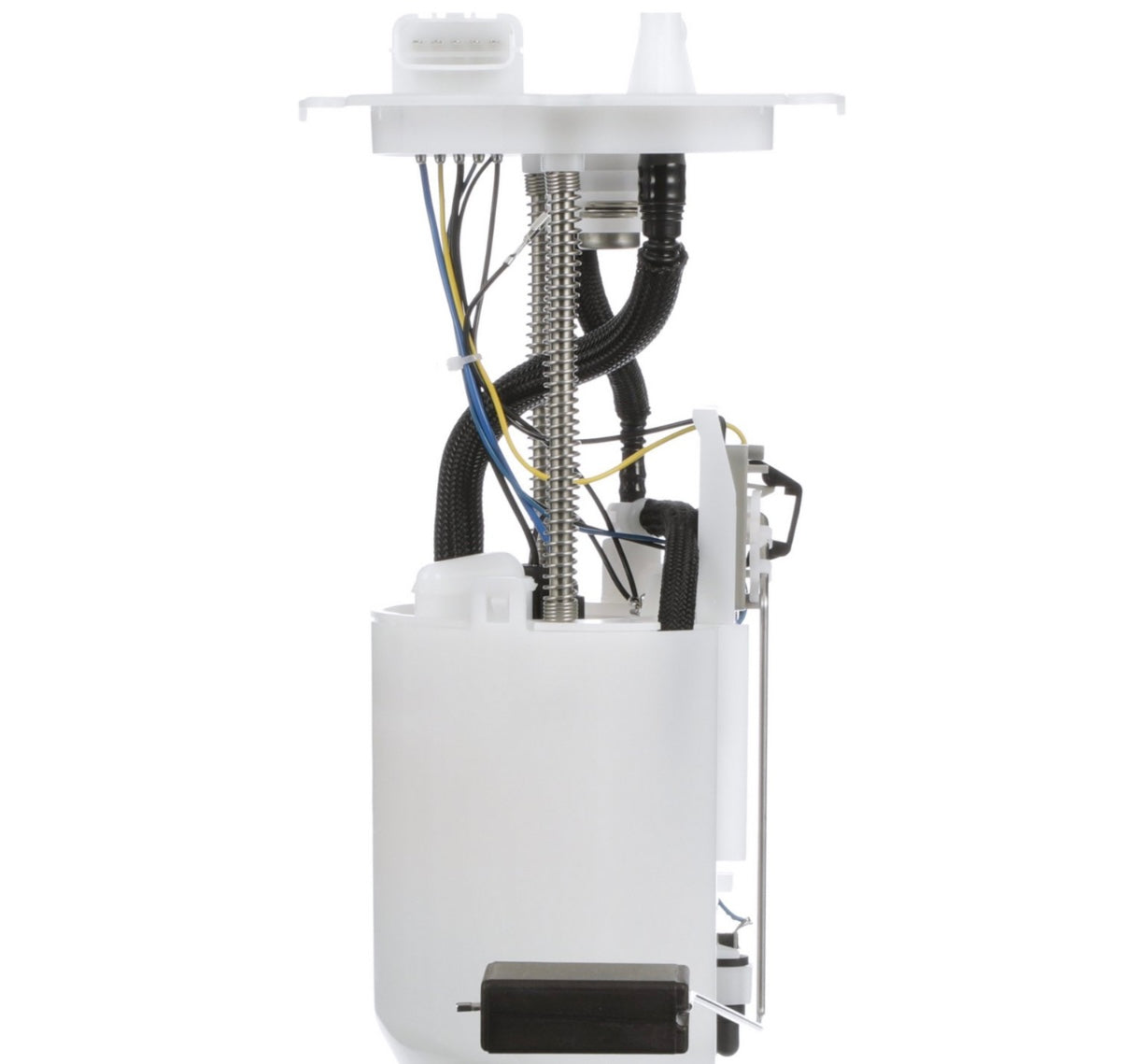

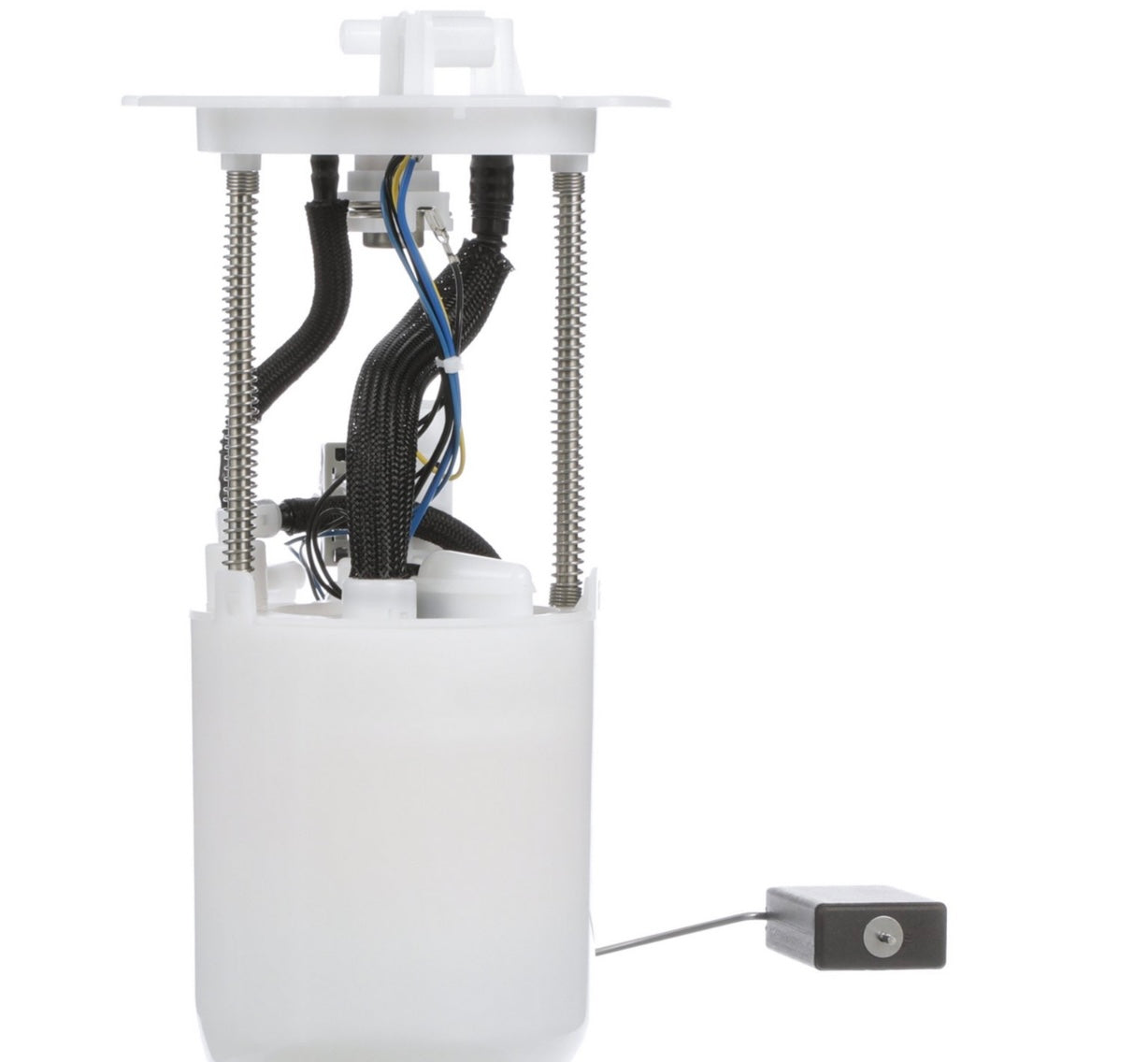

Fuel Pump & Housing Assembly DELPHI FG1183 FREE SHIPPING

$220.99 USD
$358.99 USD $220.99 USD
Sale Sold out
DELPHI
Delphi is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi is regarded as a market leader in North American fuel management.
Features & Benefits:
  • Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
  • Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
  • Lower amperage draws less load on vehicle's electrical system
  • Lower failure rates due to its innovative design and durability
  • Part is validated, tested and matched to the right vehicle application
Benefits of Purchasing a Fuel Pump & Housing Assembly

Purchasing just the fuel pump is less expensive up-front, but a complete Fuel Pump & Housing Assembly provides added benefits:

  • Extend Service Life: New strainer(s), hoses, sensors and other components help resolve problems that could be caused by more than just the pump.
  • Reduce Install Time: Since you don't have to disassemble the housing, which could lead to damage, replacement becomes a simple swap, dramatically reducing installation time.
  • Save Money: The cost of the assembly is often cheaper than buying the components individually, and means you only have to do the job once.
Prevent Premature Fuel Pump Failure

Preventing premature fuel pump failure is far less expensive and time consuming than continuing to replace the pump. There are three common causes for premature fuel pump failure:

ELECTRICAL ISSUES
Poor electrical connections will mimic symptoms of a failed pump. Before replacing the pump:
  • Use a Fuel System Tester to test pump pressure is within expected range
  • Use an Electrical Tester to test for bad wiring, burnt or corroded connectors
  • Check / Replace faulty Fuse(s) and Relay

BEFORE REPLACEMENT
FUEL CONTAMINATION
Dirt, rust or debris in the fuel can clog strainers and stick to internal pump components. When replacing the pump:
  • Replace Fuel Filter or Fuel Strainer
  • Empty and clean the tank with Fuel Tank Cleaner
  • Fill tank with fresh, uncontaminated fuel of appropriate grade

DURING REPLACEMENT
PUMP DAMAGE / OVERHEATING
Running low on gas causes your fuel to heat up quicker, and your pump to work harder. After replacing the pump:
  • Maintain at least 1/4 tank of fuel and use a Fuel Additive / Conditioner to keep pump cool and lubricated
  • If vehicle is stored without use, drain tank to prevent pump corrosion from fuel oxidation

AFTER REPLACEMENT
⚠ WARNING:
Attention California Customers - WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.
DELPHI FG1183 Specifications
Average Current Draw 7 Amp
Average Flow Rating 32 GP

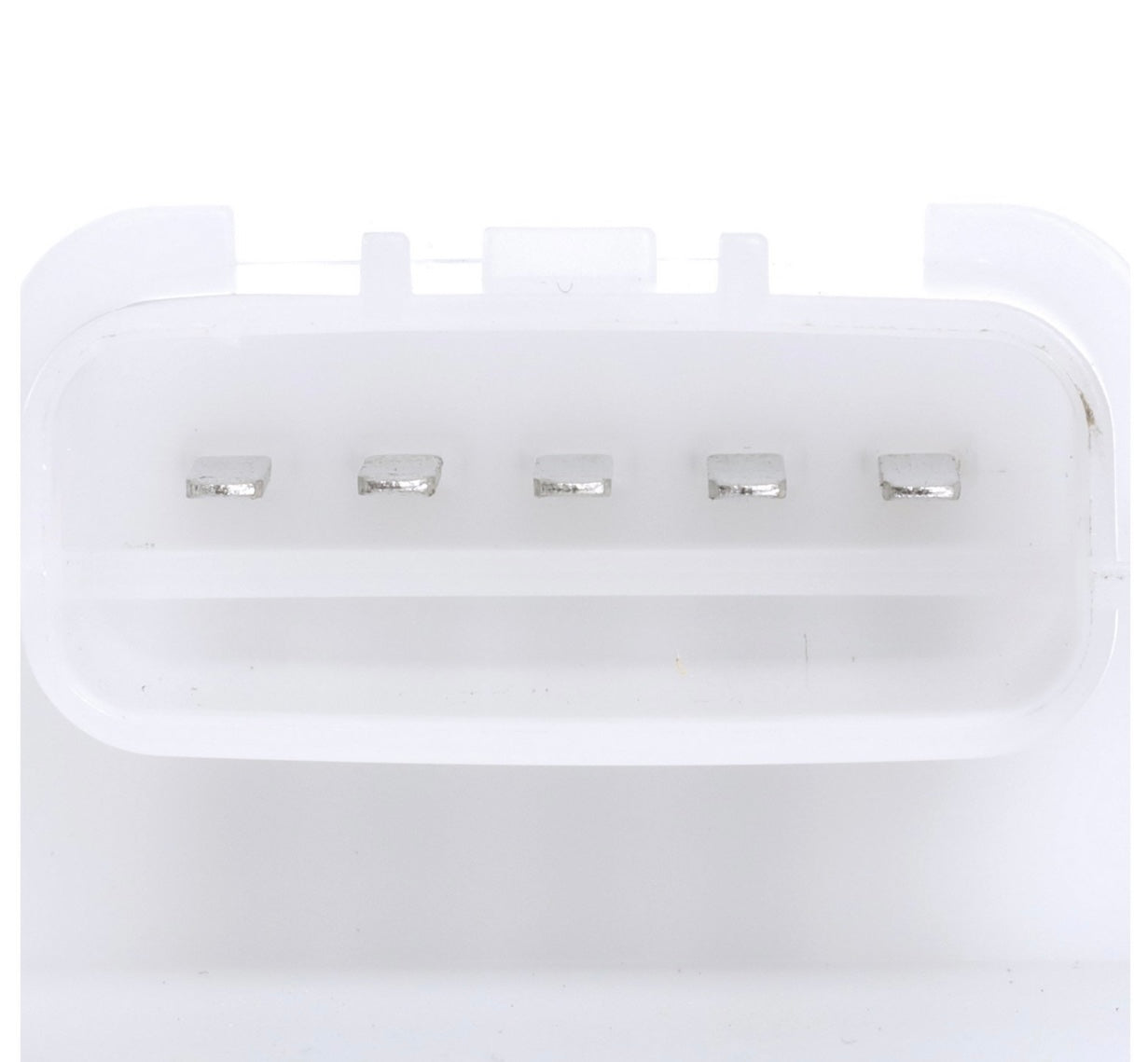

Connector Gender Female
Connector Quantity 1
Connector Shape Rectangle
Fuel Filter Included Yes
Fuel Sending Unit Included Yes
Fuel Tank Pressure Sensor Included No
Fuel Type Gas

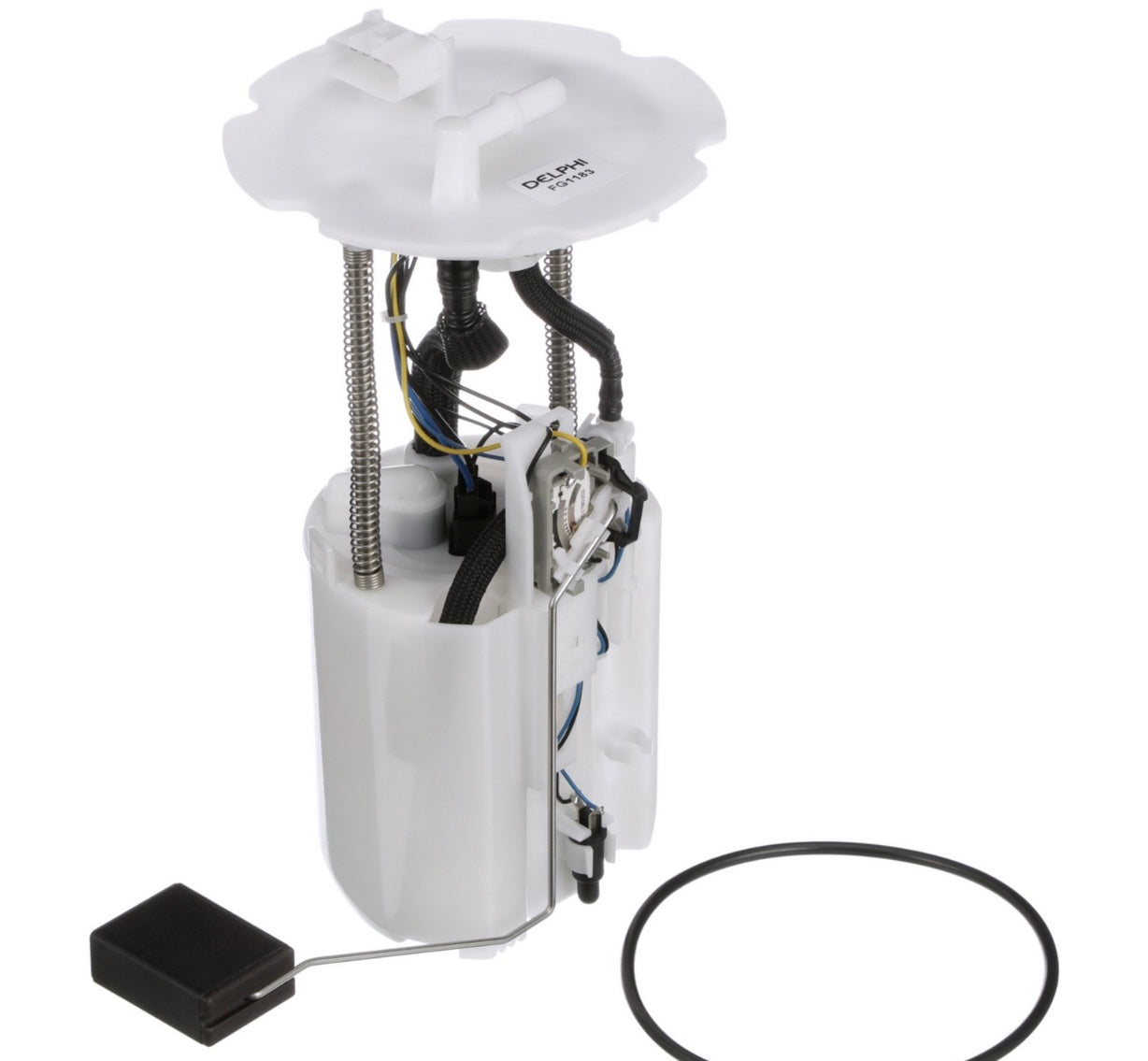

Gasket or Seal Included Yes
Gasket Or Seal Material Nitrile Rubber
Housing Material Plastic
In Tank or External In Tank
Inlet Type Strainer
Internal Or External Strainer Internal
Lock Ring Included No
Maximum Pressure 87 PS
Minimum Pressure 51 PS
Mounting Hardware Included No
Negative Ground No
Outlet Outside Diameter 0.375 IN
Outlet Quantity 1
Outlet Type Quick Connect
Pump Design Turbine
Pump Type Electric
Regulator Included Yes
Resistance Ohms Empty 80 Ohm
Resistance Ohms Full 5 Ohm
Strainer Included Yes
Terminal Gender Male
Terminal Quantity 5
Terminal Type Blade
Voltage 12 2H
Wire Harness Included No
OEM / Interchange Numbers: 170401NC0C, 17040EJ81A, 250601NC1C
INFINITI G25 2011-2012
INFINITI G37 2009-2013
INFINITI M35 2009-2010
INFINITI M45 2009-2010
INFINITI Q40 2015
INFINITI Q60 2014-2015
