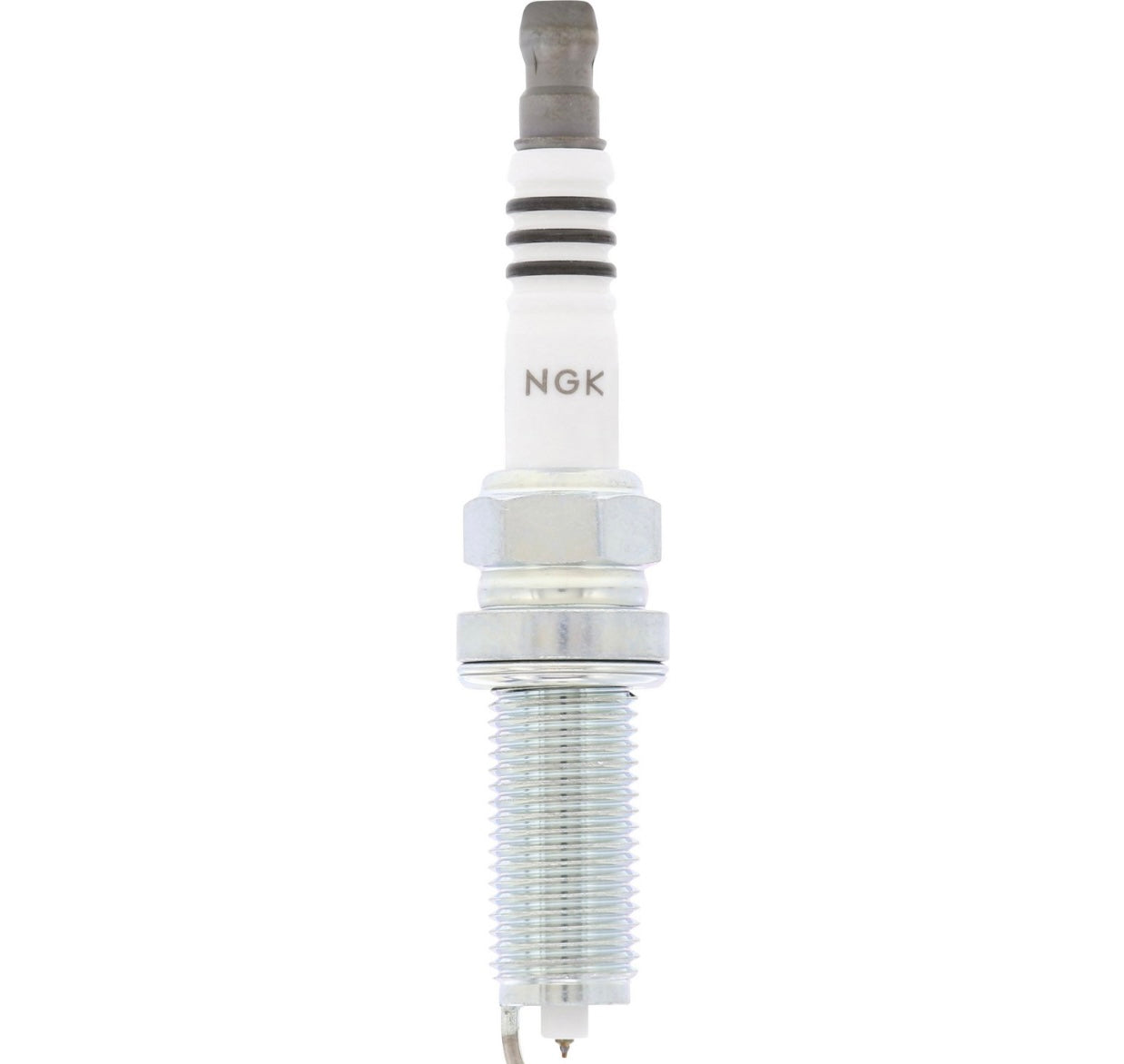

Spark Plug NGK 91784 FREE SHIPPING

$14.99 USD
$17.99 USD $14.99 USD
Sale Sold out
x1

Ignition : Spark Plug

NGK 91784

OE-Recommended Gap: 0.044”

Ruthenium HX High Ignitability; Pre-Set Gap: 0.032”

NGK
{Alternate Inventory Numbers: LKAR8BHX}
Ruthenium HX High Ignitability; Pre-Set Gap: 0.032"
NGK Spark Plugs is introducing the latest technology in high ignitability spark plugs to the automotive aftermarket: NGK Ruthenium HX. Today's efficient engine designs create more power while using less fuel and this has shortened the life of traditional Iridium and Platinum spark plugs. In response, NGK's patented Ruthenium technology is used for maximum durability and performance in newer engines where efficiency is demanded.

Features & Benefits:
  • DFE (double fine electrode) and PSPE (projected square platinum electrode) tip designs. DFE maximizes ignitability while reducing emissions for low heat engines, and PSPE provides the best ignitability and service life for high heat (typically turbo and supercharged) engines.
  • Superior oxidation resistance and enhanced blistering/anti-peeling to provide the most optimal durability at high temperatures in various driving conditions.
  • Advanced high-ignitability technology that provides more complete fuel burn than other precious metal spark plugs, resulting in quicker throttle response, smoother idle, and better cold starts.
This spark plug is pre-gapped, but may require minor adjustments with a Spark Plug Gap Tool / Feeler Gauge to match your engine's specifications. For proper engine performance, gaps should be within ±0.004" of OE-Recommended value.
Which NGK Spark Plug Is Right For You?

Material / Series Lifespan / Durability Performance / Ignitability Efficiency / Fuel Economy
Copper / Nickel V-Power
Copper 		★ ★ ★
Platinum G-Power
Platinum 		★★ ★★★★ ★
Double Platinum Laser
Double Platinum 		★★★★★ ★★ ★★
Iridium IX
Iridium IX 		★★★ ★★★★★ ★★
Iridium Laser
Iridium Laser 		★★★★★★ ★★★★ ★★★
Ruthenium HX
Ruthenium 		★★★★★★★ ★★★★★ ★★★★
Videos

Check, Set & Adjust Spark Plug Gaps

What Is Ruthenium and Why Is It Better?

Additional Resources

The Ruthenium HX Difference: Advanced Durability and Ignitability
NGK 91784 Specifications
Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Insulator Tip Projection 0.16 IN; 4.0 mm
Center Electrode Projection Mid Projection
Center Electrode Tip Material Ruthenium
Electrical Terminal Type Non-Removable Nut

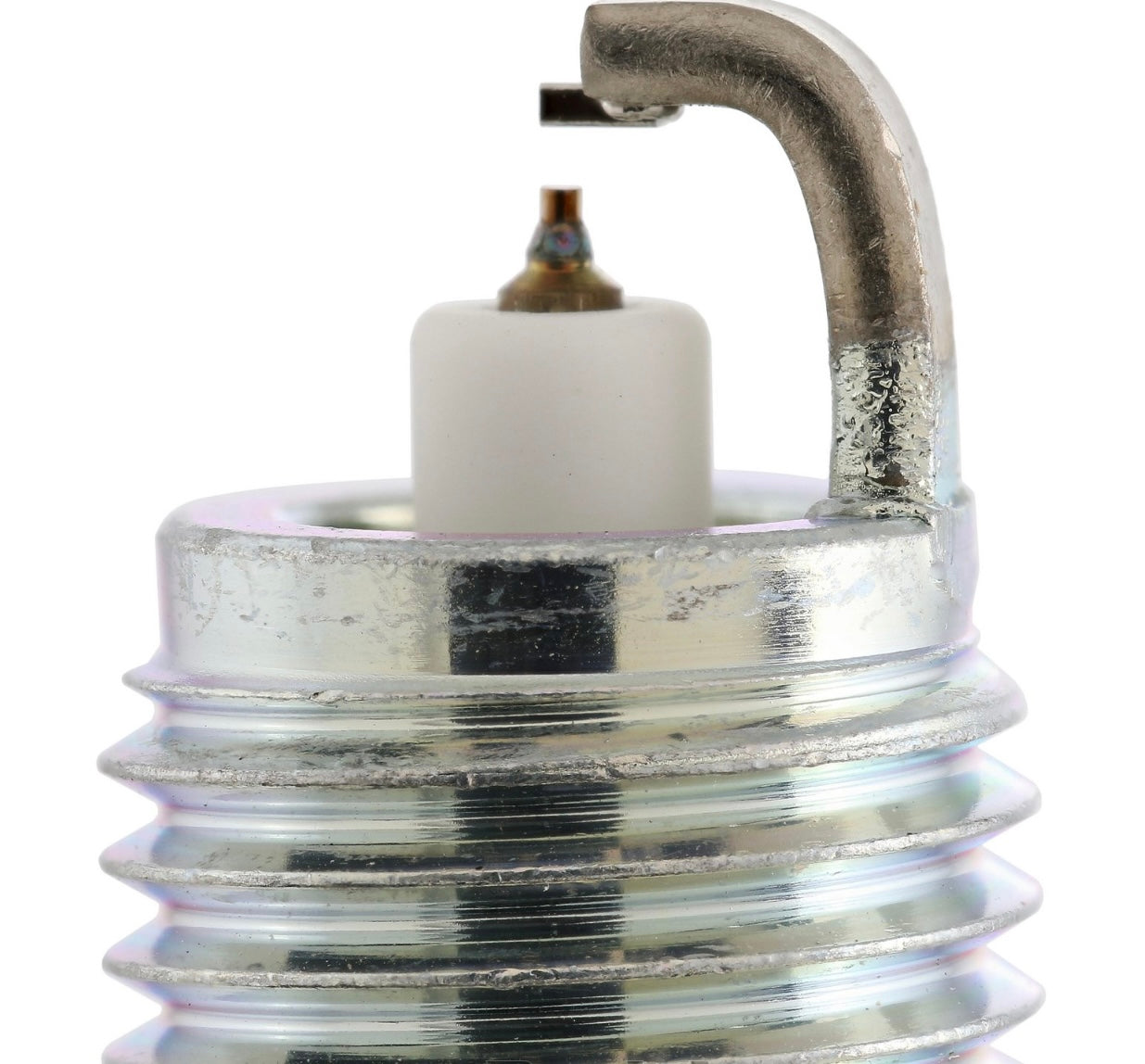

Ground Configuration J-Gap
Ground Electrode Core Material Copper
Ground Electrode Quantity 1
Ground Electrode Tip Design Projected Square Platinum Electrode (PSPE) - High Ignitability
Ground Electrode Tip Material Platinum
Hex Size 14mm
Insulator Height 2.01 IN; 51.0 mm
Insulator Material Ceramic
Manufacturer Heat Range 8
Material Grade Ruthenium
Part Number LKAR8BHX
Pre-Gap Size .032 IN; 0.8 mm
Reach 1.043 IN; 26.5 mm
Resistance 5000.0 82
Resistor Type Yes
Seat Type Flat
Service Number LKAR8BHX
Short Style Spark Plug No
Skirt No
Skirt Length 0.0 IN; 0.0 mm
Stock Number 91784
Thread Size M12 - 1.25
Thread Type Standard Metric
Washer Type Crush
Washer(s) Included Yes
OEM / Interchange Numbers: 22401JF01D, 22401JK01D

Warranty Information:
2 Months
INFINITI EX37 2013
INFINITI FX37 2013
INFINITI G37 2008-2013
INFINITI M37 2011-2013
INFINITI Q40 2015
INFINITI Q50 2014-2024
INFINITI Q60 2014-2022
INFINITI Q70 2014-2019
INFINITI Q70L 2015-2019
INFINITI QX50 2014-2017
INFINITI QX70 2014-2017
LEXUS GX550 2024-2025
LEXUS LS500 2018-2025
LEXUS LX600 2022-2025
LEXUS LX700H 2025
NISSAN 370Z 2009-2020
NISSAN GT-R 2009-2020
NISSAN Z 2023-2025
TOYOTA SEQUOIA 2023-2025
TOYOTA TUNDRA 2022-2025
