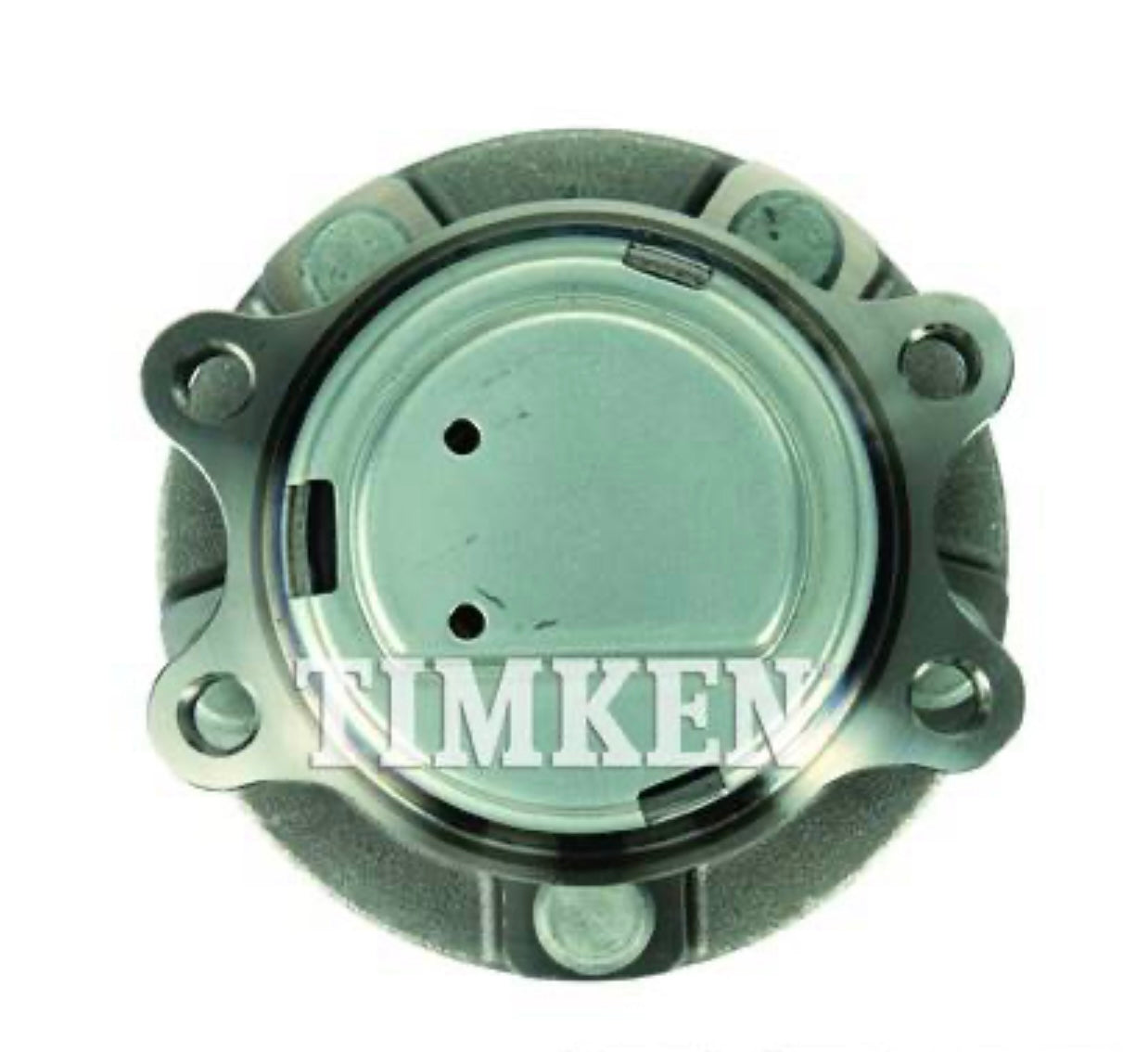

Wheel Bearing and Hub TIMKEN HA590376 FREE SHIPPING

$149.99 USD
$353.99 USD $149.99 USD
Sale Sold out
TIMKEN
Features & Benefits:
  • Get a smoother ride with Timken hub assemblies. Low runout reduces noise and vibration; improving braking performance.
  • Premium seals feature reinforced outer case; ribbed rubber inner diameter; contamination exclusion system; vent holes to prevent installation damage; promote positive sealing and enhance seal life.
  • Timken ABS sensors are 100% tested to monitor wheel speed for Anti-lock Braking Systems (ABS)
  • Timken hub assemblies feature premium bearings with precision profiles; uniform internal geometry; enhanced surface finishes to increase load carrying capacity; extend bearing life and improve fuel.
  • Timken uses OE-developed tests controling the design; materials and process used to manufacture their hub bearing assemblies; ensuring consistently high performance
Installation Tips
  • Use an Axle Nut Socket to remove the axle nut
  • After removing the brake caliper, suspend it using a Caliper Hanger to avoid damage to the brake hose
  • A Wheel Hub Removal Tool can help remove a stubborn wheel hub assembly from the knuckle
  • During installation, use a Torque Wrench to tighten the axle nut to the manufacturer's specification. Do not use an impact wrench as it is easy to over tighten the axle nut. The torque specification can be found in your owner's manual
Videos

Timken Tricks of the Trade - Finding Wheel Hub Torque Specs

Timken Wheel Hub Assemblies - Performance That’s Worth It

Additional Resources

Tech Tip: Checking A Hub Bearing Assembly
Why Should I Choose A Timken Hub Assembly?
Tech Tip: Removing and Installing a Hub Bearing Unit
Tech Tip: Symptoms of a Worn Wheel Hub Bearing
Symptoms Of A Failing Wheel Bearing & Hub

Wheel hub units are low maintenance parts, but that doesn’t mean they last forever. Uneven road surfaces, heavy driving conditions (such as towing or racing), and under-inflated tires put extra strain on the hub bearing and can lead to premature failure. Common signs of a bad hub unit include:
  • A humming, rumbling or growling noise that increases with acceleration
  • A loud constant whining or grinding noise when the vehicle is in motion
  • Excessive play in the steering wheel
  • Steering wheel vibration that changes with the vehicle speed or as the vehicle turns
  • ABS system malfunction

How To Identify The Faulty Wheel Bearing & Hub

It is often difficult to pinpoint which hub unit has gone bad while driving because noise and vibration travels through the frame of the vehicle. Here are a two tests you can do to help identify which hub unit has gone bad:

Shake Test: Identifying Play or Looseness
  1. Lift your vehicle so the wheel is off the ground
  2. Place your hands on the sides of the tire and try to shake the wheel
  3. Now place your hands on the top and bottom of the tire and try to shake the wheel again
  4. If you feel movement in both directions, you have play in your bearing and it needs to be replaced
  5. Note: If you feel movement when shaking the wheel left to right, but not top to bottom, you could have a worn out tie rod end. Similarly, if you have movement top to bottom, but not left to right, you may have a worn out ball joint.
Spin Test: Identifying Noise or Grinding
  1. Lift your vehicle so the wheel is off the ground and can spin freely
  2. Spin the wheel, in either direction, and listen for a grinding or howling noise
  3. If you hear a loud grinding or howling noise, that increases with the speed of the wheel, you have a failed bearing that needs to be replaced
  4. Note: It is best to test both front or both rear bearings at the same time so you can compare the difference between the two sides. If you have a failed bearing, there will be a noticeable difference in the amount of noise you hear during this test
TIMKEN HA590376 Specifications
ABS/Non-ABS (Y/N) Yes
ABS Type Encoder
Bearing Type BALL
Bolt Circle Diameter B (IN) 4.500
Bolt Circle Diameter H (IN) 4.724
Bolt Quantity 4.000
Bolt Size (IN) M12x1.25
Brake Pilot Dia (IN) 2.677
Driven or Non Driven? NON DRIVEN
Flange (#) 2.000
Flange Diameter (IN) 5.354
Flange Offset (IN) 1.614
Flange Shape Modified
Hub Pilot Dia G (IN) 3.661
Roll Form (Y) Yes
Wheel Pilot Dia (mm) 66.000
Wheel Studs (Y/N) Yes
Wheel Stud Qty 5.000
Wheel Stud Size (IN) M12x1.25
OEM / Interchange Numbers: 40202EJ70A

TIMKEN Warranty Information:
12 Months
INFINITI EX35 2008-2012
INFINITI EX37 2013
INFINITI FX35 2009-2012
INFINITI FX37 2013
INFINITI G25 2011-2012
INFINITI G35 2007-2008
INFINITI G37 2008-2013
INFINITI M35 2006-2010
INFINITI M35H 2012-2013
INFINITI M37 2011-2013
INFINITI M45 2006-2010
INFINITI M56 2011-2013
INFINITI Q40 2015
INFINITI Q50 2014-2022
INFINITI Q60 2014-2022
INFINITI Q70 2014-2019
INFINITI Q70L 2015-2019
INFINITI QX50 2014-2017
INFINITI QX70 2014-2017
NISSAN 370Z 2009-2020
NISSAN Z 2023
